Seismic Testing: Up Close and Personal

Thanks to a Splashdown reader, here's a look at what all the plastic ribbons hanging everywhere are all about:
Geokinetics' brocure answers FAQs, beginning with What is a 3-D Seismic Survey? It is a method of geophysical exploration, using sound waves from an energy source to determine information about sub-surface formations. Sound waves are used to penetrate the ground, in the same way a submarine's sonar penetrates the water. Sonar reflects back and detects objects underwater. In the case of a 3-D seismic survery, the sound waves are used to map rock layers deep underground.
Click on brochure images to enlarge for readability.


The company distributes their brochure, and proffers the following permit, for exploration rights, to surface owners.
(Click to enlarge.)

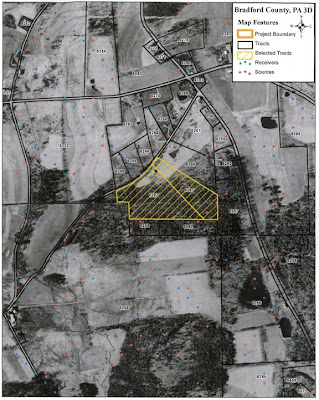

The map below indicates a parcel of land that is not leased to the gas industry, and the locations of seismic "sources"(location of explosives) and "receivers" (listening devices) connected to a recording truck by cables several miles long. Sometimes vibroseis equipment (a thumper truck) is used as a source instead of explosives.

(Click to enlarge.)

The land is surveyed and marked with locations for sources and receiver points.


These trucks travel the contracted property, and dig the shot holes.


Sometimes collateral damage occurs as well.

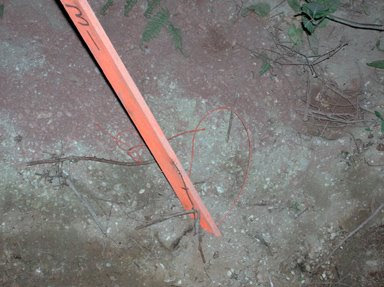

Pictured above is a stake marking the location of a "source".
Note the thin red-orange sensor cable attached.
Buried explosives are detonated one at a time.

Finally "all shot holes will be plugged to state specifications."

DEMAND ACCOUNTABILITY!
